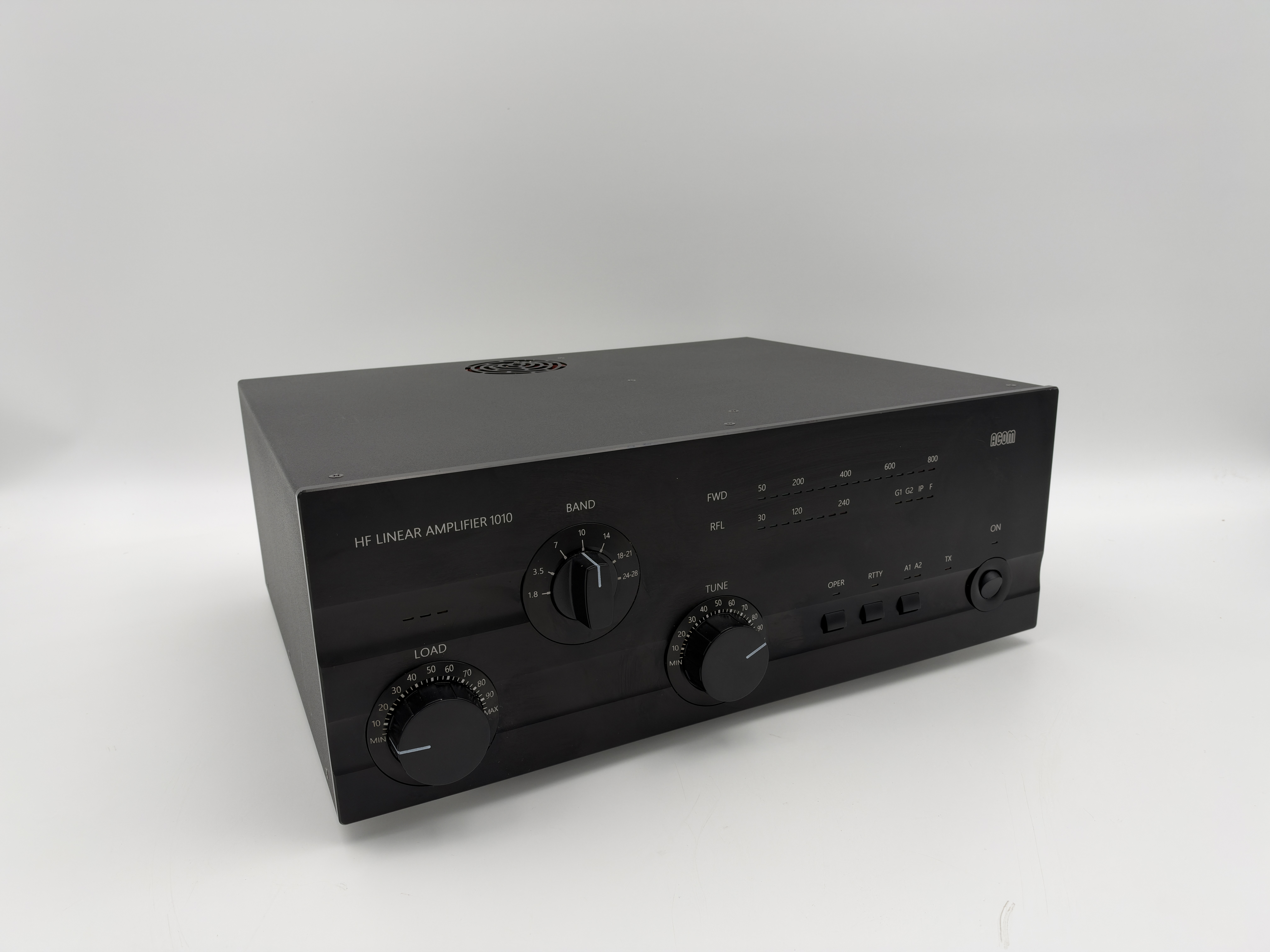

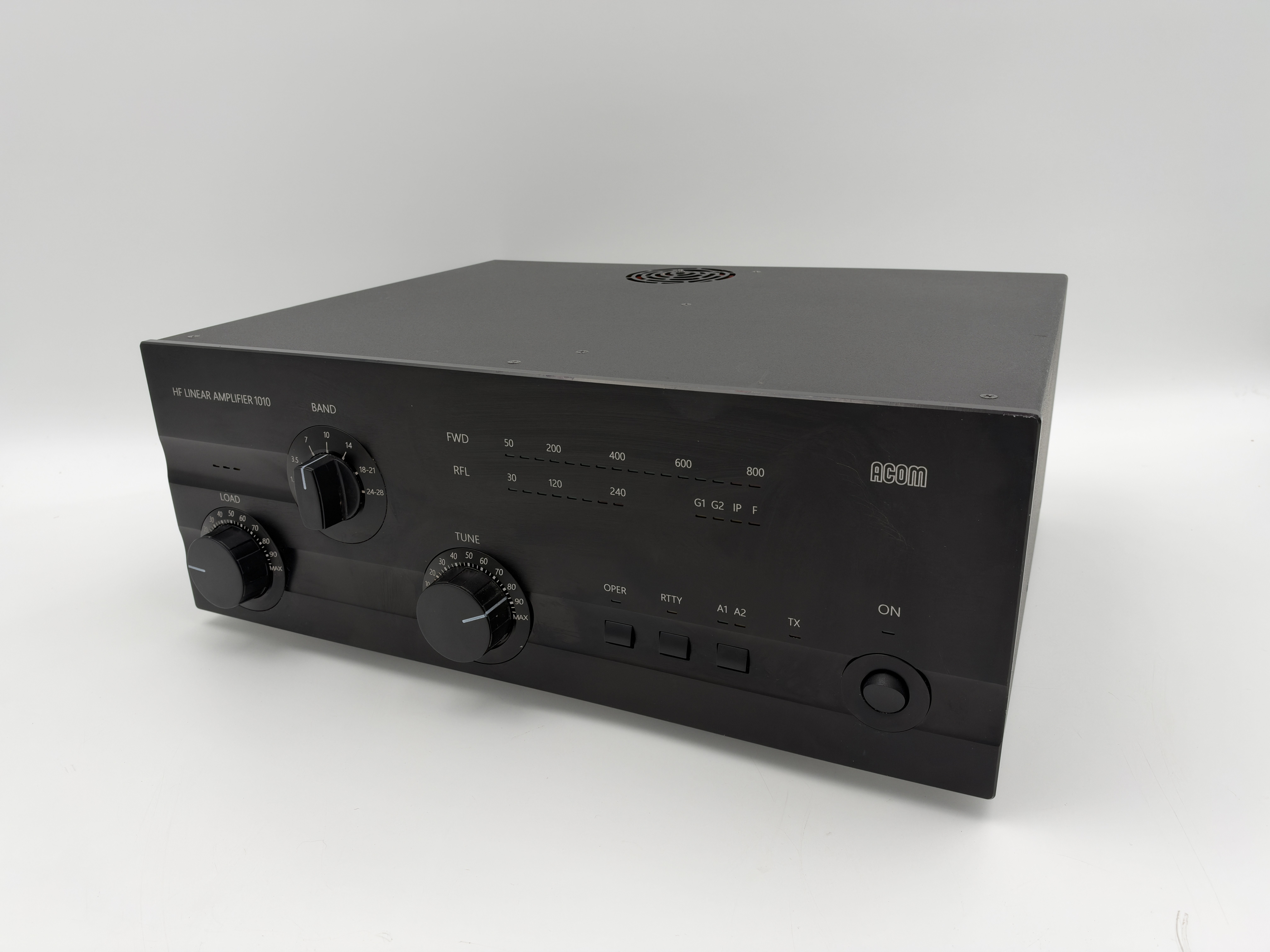

Acom 1010 USED | 90 Days Warranty

Frequency Coverage

• All amateur bands from 1.8 through 29.7 MHz:
  • 1.800 – 2.000 MHz (160 m band)
  • 3.500 – 4.000 MHz (80 m band)
  • 5.020 – 5.455 MHz (60 m band)*
  • 7.000 – 7.300 MHz (40 m band)
  • 10.100 – 10.150 MHz (30 m band)
  • 14.000 – 14.350 MHz (20 m band)
  • 18.068 – 18.168 MHz (17 m band)
  • 21.000 – 21.450 MHz (15 m band)
  • 24.890 – 24.990 MHz (12 m band)
  • 28.000 – 29.700 MHz (10 m band)
• (*) Please refer to the applicable regional band plans and laws for specific allocations and limitations;

Rated Power Output

• 700 W ±0.5 dB PEP or 500 W ±0.5 dB continuous carrier;
• The ACOM 1010 amplifier delivers its specified output power over both mains supply voltage ranges: 85-132 VAC and 170-264 VAC.

Intermodulation Distortion

• Better than 35 dB below rated output;

Hum and Noise

• Better than 40 dB below rated output;

Harmonic Output Suppression

• Better than 50 dB below rated output;

Input and Output Impedances

• Nominal value: 50 Ohm unbalanced, UHF (SO-239) type connectors;
• Input circuit: broadband, SWR less than 1.3, 1.8-30 MHz continuously (no tuning, no switching);
• Bypass path: SWR less than 1.1, 1.8-30 MHz continuously, 200 W maximum;
• Output (antenna) impedance matching capability: SWR up to 3 or higher;

RF Power Gain

• 11 dB typically, frequency response less than 1 dB;

Drive Power

• 50-70 W for rated power output;

Mains Power Supply Voltage

• 85-132 VAC / 170-264 VAC (100, 110, 120, 200, 210, 220, 230 & 240 V nominal taps, +10% -15% tolerance), 50-60 Hz, Single phase;

Mains Power Consumption

• 1200 VA at rated output;

Safety and Electromagnetic Compatibility

• Complies with the European Union’s CE safety and electromagnetic compatibility requirements;
• Complies with the US Federal Communications Commission (FCC) regulations – FCC Identifier: SRRA1010, Date of Grant: 20 April 2005;

Size & Weight (operating, excluding connected cables)

• WxDxH: 402x315x166 mm, 17 kg (15.9×12.4×6.6 inches, 37.5 lbs.);

Shipping Size & Weight

• WxDxH: Approx. 610x520x370 mm, 20.0 kg (24×19.8×14.6 inches, 44.1 lbs.),
  actual as of September 2024;
• Please, contact us for shipment details;

Operating environments

• Temperature range: 0 to +50 degrees Celsius (32 degrees F to 122 degrees F);
• Relative air humidity: up to 95% @ +35 degrees Celsius (95 degrees F);
• Height above sea level: up to 3050 m (10000 ft) without output deterioration.
• The above details maybe subject to change depending on the model supplied.
