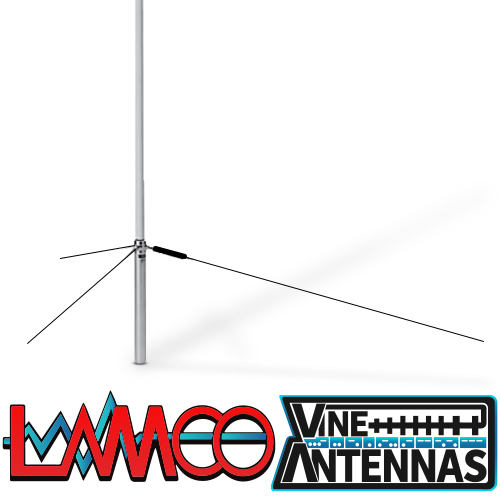

Diamond V-2000 50/145/430Mhz Tri band LAMCO Barnsley
Specifications:
Bands: 6m/2m/70cm
Frequency (MHz): 52-54/144-148/440-450
Gain: 2.15dBi/6.2dB/8.4dB
Impedance (nominal): 50W
VSWR: 1.5:1 (typical)
Power Rating: 150 watts
Element Phasing: 1/2l/2-5/8l/4-5/8l
Max Wind Rating: 112 m.p.h.
Mast Dia. Acceptance: 1.2 to 2.4 inches
Length/Weight 8.3 ft./2.6 lbs.
Connector: SO-239 Female
The V2000 utilises a linear phase shift design to couple the different frequency band sections together. A watertight joint assembly connects the two antenna sections into one rigid assembly. The resulting antenna has the same strength as a one piece structure. This is the ideal antenna for FM operation on 6 meter, 2 meter, and 70cm bands. Similar in construction to the X200 dualband, the V2000 has an additional counterpoise radial – adjustable for 6m (52-54 MHz only). With 6m activity, enjoy the freedom of 3 bands in one compact antenna. Special Features: • Fiberglass radome • Overlapping outer shells for added strength • Strong waterproof joint couplings • Stainless steel hardware • Wide band performance • Highest gain • High wind rating • DC grounded; antenna element and radials connected to mounting pipe • Three radials • One Year Limited Warranty against defects in material or workmanship • 6m/2m/70cm N-Type Connector Diamond® MX2000 triplexer is required for multiband operation.
