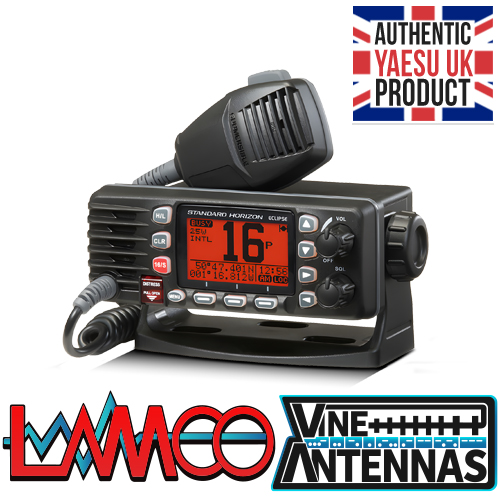

Standard Horizon GX1300 Eclipse – Compact Class D DSC Marine VHF Radio

The Standard Horizon GX1300 Eclipse is an ultra-compact, budget-friendly fixed mount VHF marine radio designed for reliability, ease of use, and enhanced safety. Fully compliant with ITU-R M.493-13 Class D DSC standards and rated IPX8 waterproof, this radio is ideal for boaters who need essential communications features without compromise.

With a bright, oversized dot matrix display, an intuitive icon-based menu system, and a rugged waterproof housing, the GX1300 Eclipse delivers premium performance in a compact form factor.

Standard Horizon GX1300 Eclipse Features

• Ultra-Compact Class D Fixed Mount VHF

  • Only 5.9 inches deep for easy installation in tight spaces.

• Class D DSC Compliant

  • Meets ITU-R M.493-13 with a separate dedicated Channel 70 DSC receiver.

• Full Dot Matrix Display

  • Oversized 31mm x 55mm display for clear visibility of channel, GPS, and DSC info.

• Easy-to-Use Icon/Menu System

  • Simplified user interface for quick access to all functions.

• IPX8 Waterproof Rating

  • Submersible to 1.5 meters (4.92 ft) for up to 30 minutes—ideal for marine environments.

• DSC Features

  • Digital MAYDAY with vessel ID, GPS position, and time (when connected to GPS).

  • Supports Individual, Urgency, Safety, Position Send, and Position Request.

  • DSC Test Calling and Auto DSC Channel Switching included.

• NMEA Connectivity

  • NMEA In/Out to connect with compatible GPS chart plotters.

• GPS Position Polling

  • Automatically poll up to four other vessels’ GPS positions via DSC.

• Channel Coverage

  • Includes USA, International, and Canadian Marine Channels.

  • NOAA Weather Channels with Weather Alert functionality.

• Programmable Functions

  • Programmable soft keys, 10 channel presets, and priority scan modes.

• Clear Voice Noise Reduction

  • Reduces wind and engine noise for clearer microphone audio.

Enhanced Safety with Digital Selective Calling

The Standard Horizon GX1300 Eclipse is equipped with a dedicated receiver for Channel 70, enabling it to receive DSC calls even while actively monitoring voice communications. In an emergency, the DSC DISTRESS button transmits a digital MAYDAY with GPS coordinates and time (when connected), streamlining the rescue response.

Optimised Design for Easy Installation

With a 20mm reduction in rear chassis depth, the GX1300 Eclipse is now easier than ever to install in small consoles and tight spaces. The intuitive layout and bold backlit display make it a favorite among both casual and experienced mariners.

Reliable Warranty and Support

Enjoy peace of mind with Standard Horizon’s industry-leading 3-Year Waterproof Warranty. If the GX1300 Eclipse fails due to water damage or manufacturing defects within three years, it will be repaired or replaced free of charge. Lifetime flat-rate and loyalty service programs are available for extended support beyond the initial warranty.

Standard Horizon GX1300 Eclipse Accessories

Mounting Hardware

• MMB-84 – Flush Mounting Bracket

Rain/Dust Covers

• HC1100 Dust Cover

External Speakers

• MLS-300B – External Speaker (Black)

• MLS-300W – External Speaker (White)

• MLS-310B – 10W Amplified Speaker with Volume Control (Black)

• MLS-310W – 10W Amplified Speaker with Volume Control (White)

Summary

Whether you’re a casual boater or a serious mariner, the Standard Horizon GX1300 Eclipse delivers advanced DSC functionality, excellent audio clarity, and rugged reliability in a compact and affordable package. With modern features like position polling, DSC test calling, and noise reduction, this VHF marine radio is the smart choice for communication and safety on the water.
