TECSUN PL-990X | Multiband Digital Receiver

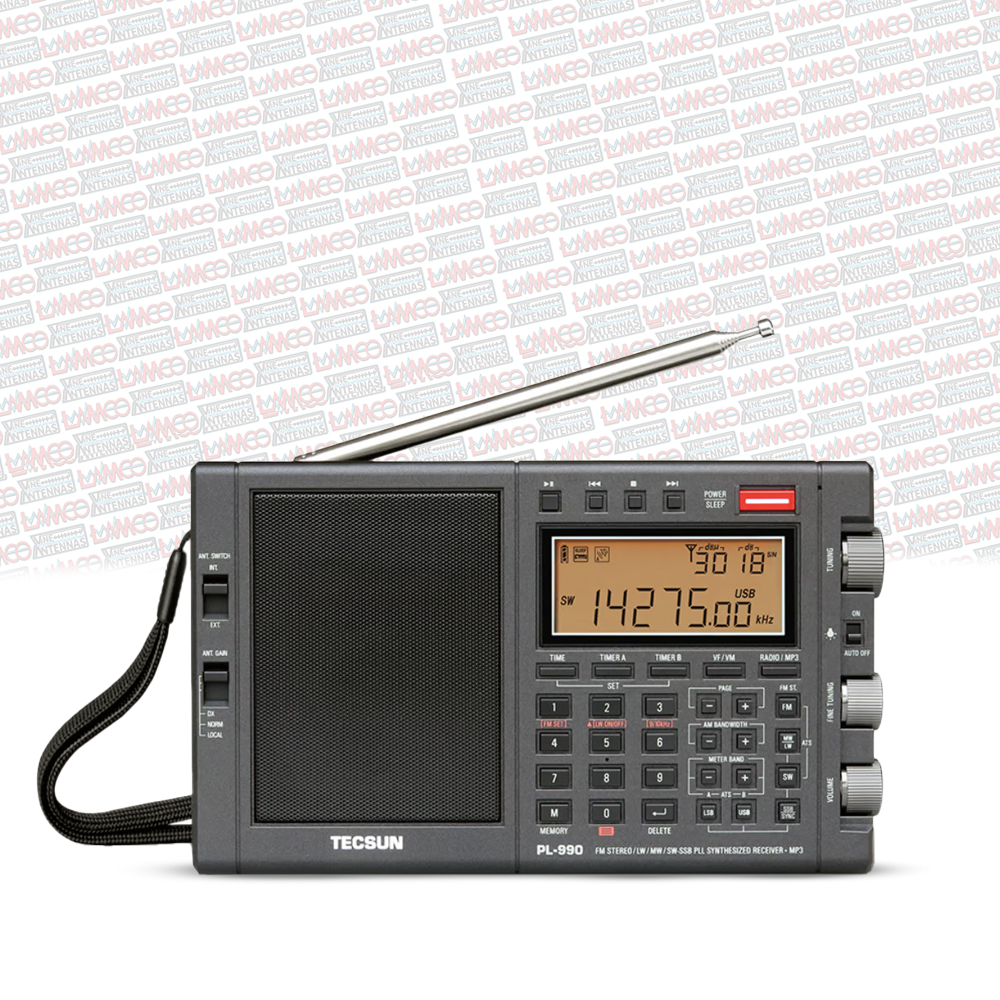

Tecsun PL-990x High-Performance Shortwave Receiver

The Tecsun PL-990x is a premium multi-band receiver offering high-performance reception across FM, MW (AM), LW, and SW bands. Featuring advanced tuning, SSB capabilities, and external antenna support, it is perfect for radio enthusiasts, travellers, and emergency preparedness.

Key Features

Versatile Multi-Band Reception

• FM Coverage: 64-108MHz, with selectable frequency ranges
• AM Reception: MW (520-1710kHz) & LW (100-519kHz)
• Shortwave (SW): 1711-29999kHz, supporting international broadcasts
• Supports AM, CW, and Single Sideband (SSB) communications

Superior Tuning & Signal Control

• SSB tuning in 10Hz steps (independent USB & LSB selection)
• Synchronous detection range of ±1kHz for enhanced clarity
• Independent fast & slow tuning structure for precision control
• Storage for up to 3,150 frequencies across 25 memory pages

High-Quality Audio & Amplification

• Class AB power amplifier for superior sound quality
• Super dynamic full-range speaker for clear, rich audio
• Headphone output (supports stereo headphones below 300Ω)

Expandable Connectivity & Power Options

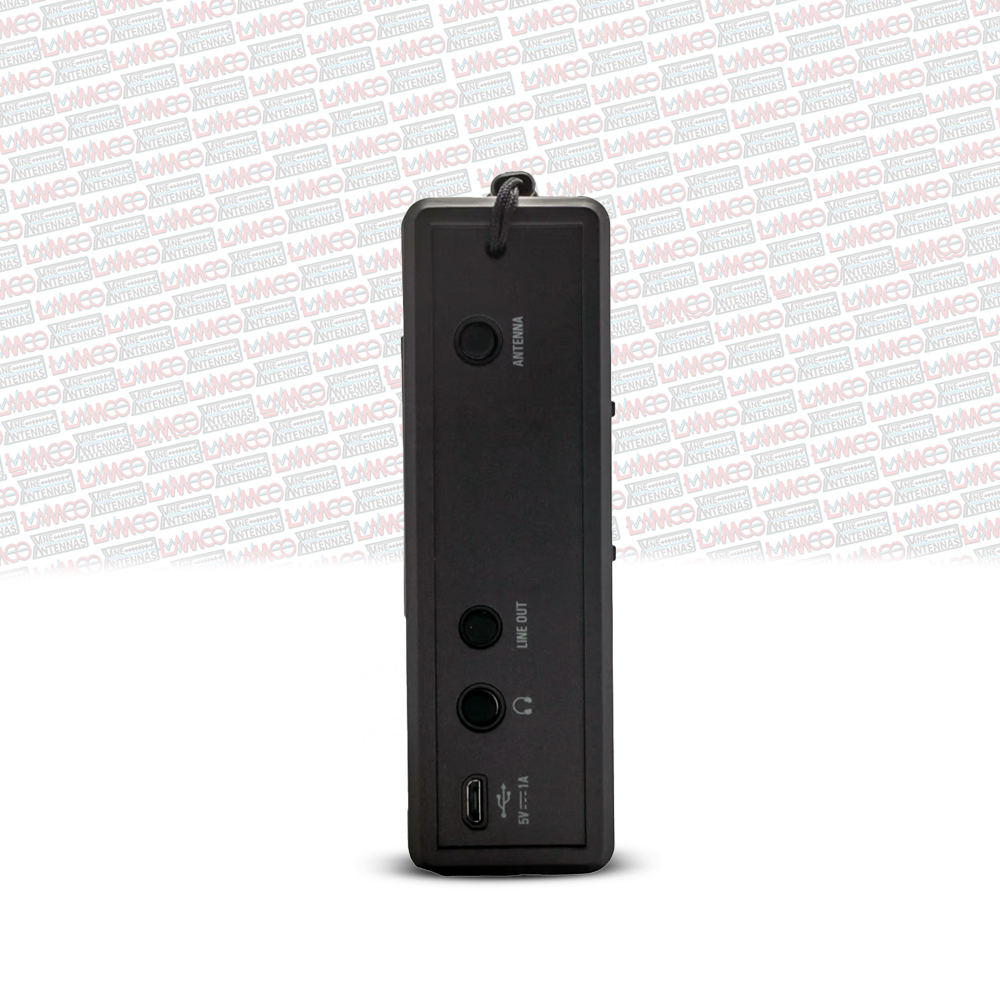

• External antenna input for SW reception & all bands
• USB-powered 3.7V rechargeable lithium battery (18650 type)
• Supports microSD card (up to 128GB) for music playback (WAV, FLAC, APE, WMA, MP3)

Technical Specifications

• Frequency Ranges:
  • LW: 100-519kHz (9kHz steps, 1kHz fine-tuning)
  • MW: 520-1710kHz (10kHz steps) / 522-1620kHz (9kHz steps)
  • SW: 1711-29999kHz (5kHz steps, 1kHz fine-tuning)
  • FM: 64-108MHz, multiple region settings
• Intermediate Frequency (IF):
  • AM: 1st IF – 55.845MHz, 2nd IF – 10.7MHz, 3rd IF (DSP) – 45kHz
• Audio Playback Formats: WAV, FLAC, APE, WMA, MP3
• Speaker: 4Ω, 3W
• Power Supply: USB 5V or 18650 lithium battery (included)
• Dimensions: 198 × 120 × 38 mm
• Weight: 620g

What’s in the Box?

Tecsun PL-990x Receiver
18650 Lithium Battery

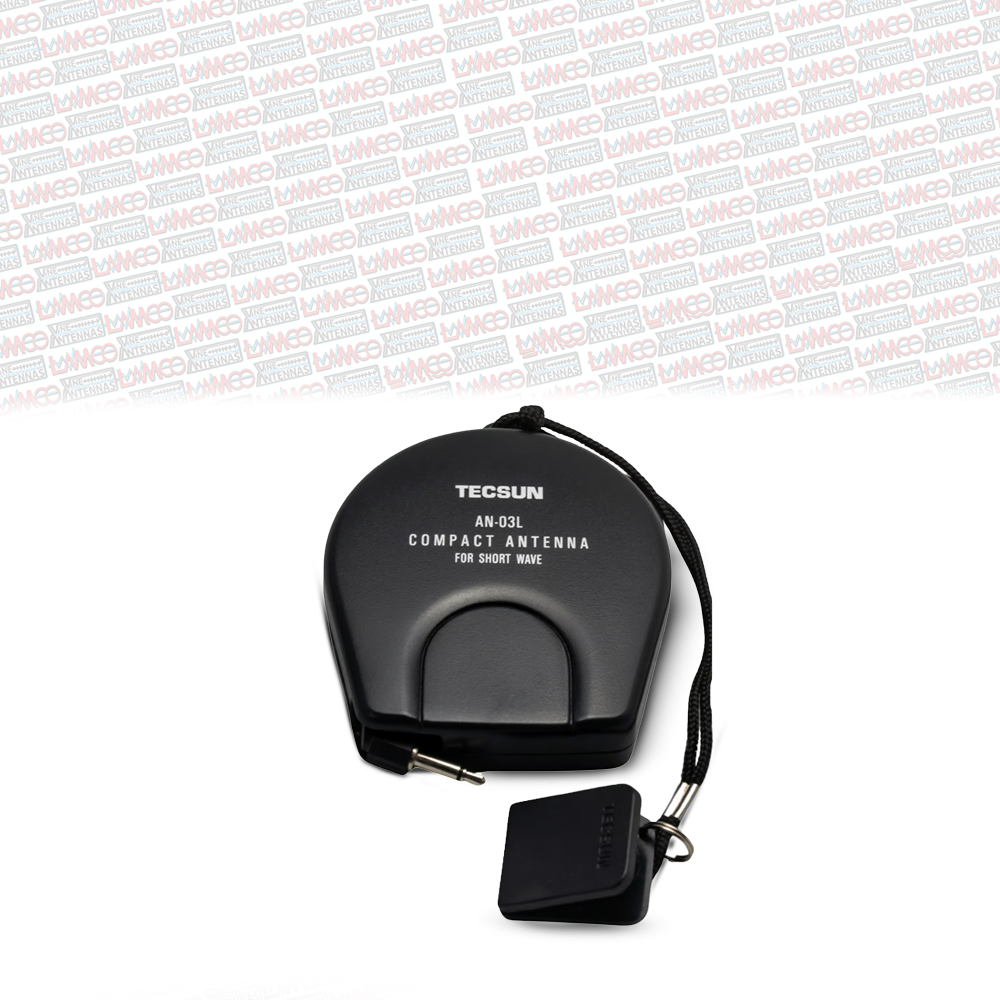

External Antenna
Hi-Fi Stereo Headset
USB Charging Cable

With high-performance reception, advanced tuning options, and superior audio quality, the Tecsun PL-990x is the ultimate shortwave receiver for enthusiasts, travellers, and emergency communication needs
