In stock

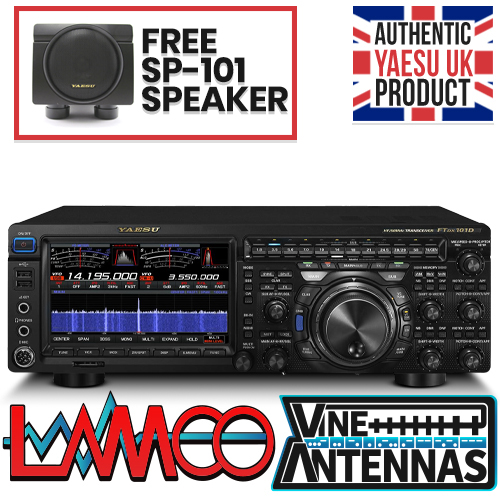

Yaesu FTDX101D (100W)
The Yaesu FTDX101 series pays homage to the legendary FT-101—one of the most iconic HF transceivers in amateur radio history. Featuring a state-of-the-art hybrid SDR architecture, ultra-low noise design, and robust build quality, the FTDX101MP and FTDX101D are engineered for demanding DXers, contesters, and advanced HF enthusiasts.
Hybrid SDR Receiver: Combines Narrow Band SDR and Direct Sampling SDR for unparalleled dynamic range and signal clarity.
Dual VFOs & Dual Band Scope: Monitor and operate on two bands simultaneously.
400MHz HRDDS Local Oscillator: Delivers exceptional phase noise performance (−150 dBc/Hz @ 2kHz).
3DSS Spectrum Display: Stunning 3D visualisation of spectrum activity in real time.
VC-TUNE RF Preselector: Automatic or manual control for peak signal clarity and unwanted signal attenuation.
Crystal Roofing Filters (Optional): Ultra-sharp 300Hz and 1.2kHz filters for CW and SSB.
Remote Control Ready: Operate via LAN/Internet using optional remote control unit.
RMDR: ≥123 dB (2kHz spacing)
BDR: ≥150 dB (2kHz spacing)
IMDR (3rd Order): ≥110 dB (2kHz spacing)
18-bit A/D Converter + FPGA Processing
High-Performance Front-End & Local Oscillator
The FTDX101 series utilizes a unique hybrid SDR system: strong signals are handled by the Narrow Band SDR with roofing filters, while band overview and scope display are driven by Direct Sampling SDR for real-time updates.
High C/N Ratio: Achieved through the 400MHz HRDDS synthesizer system.
-150 dBc/Hz Phase Noise: Ultra-low local oscillator noise floor.
Direct Digital Transmit Path: Clean, distortion-free transmission with 16-bit DAC directly to final stage.
7-inch Touch TFT Display: 800×480 resolution, intuitive layout.
MPVD (Multi-Purpose VFO Dial): Control VC-TUNE, SUB VFO, Clarifier, and more.
ABI (Active Band Indicator): Quick visual feedback on VFO and transmission status.
Ergonomic Layout: High-use controls (WIDTH, SHIFT, VC-TUNE) are center-mounted for easy access.
Remote PC Software Support: Full remote access over LAN or Internet (optional unit required).
Remote Dual Band Scope: View band activity and adjust settings in real-time.
| Model | Output Power | Roofing Filters | VC-Tune | PSU Included | Notes |
|---|---|---|---|---|---|
| FTDX101MP | 200W | Optional | Yes | Yes (External) | Flagship edition with higher TX power |
| FTDX101D | 100W | Optional | Yes | No | Standard edition |
Antenna Tuners
FC-40: Automatic long-wire tuner
Filters
VCT-101: VC-Tune Unit
Microphones
M-1: Flagship condenser + dynamic mic with 9-band EQ
M-100: Dual-element mic with built-in high/low cut
M-70D: Directional condenser with low-cut filter
Headsets
YH-77STA: Lightweight stereo headset
Cables
CT-178: Quadra control cable
The Yaesu FTDX101 series represents the pinnacle of HF transceiver performance, combining cutting-edge hybrid SDR technology with legendary Yaesu engineering. Whether you’re chasing DX, operating contests, or looking for crystal-clear signal quality, the FTDX101MP and FTDX101D deliver elite performance and unmatched flexibility.
