Comet CFX-431 USED | 90 Days Warranty

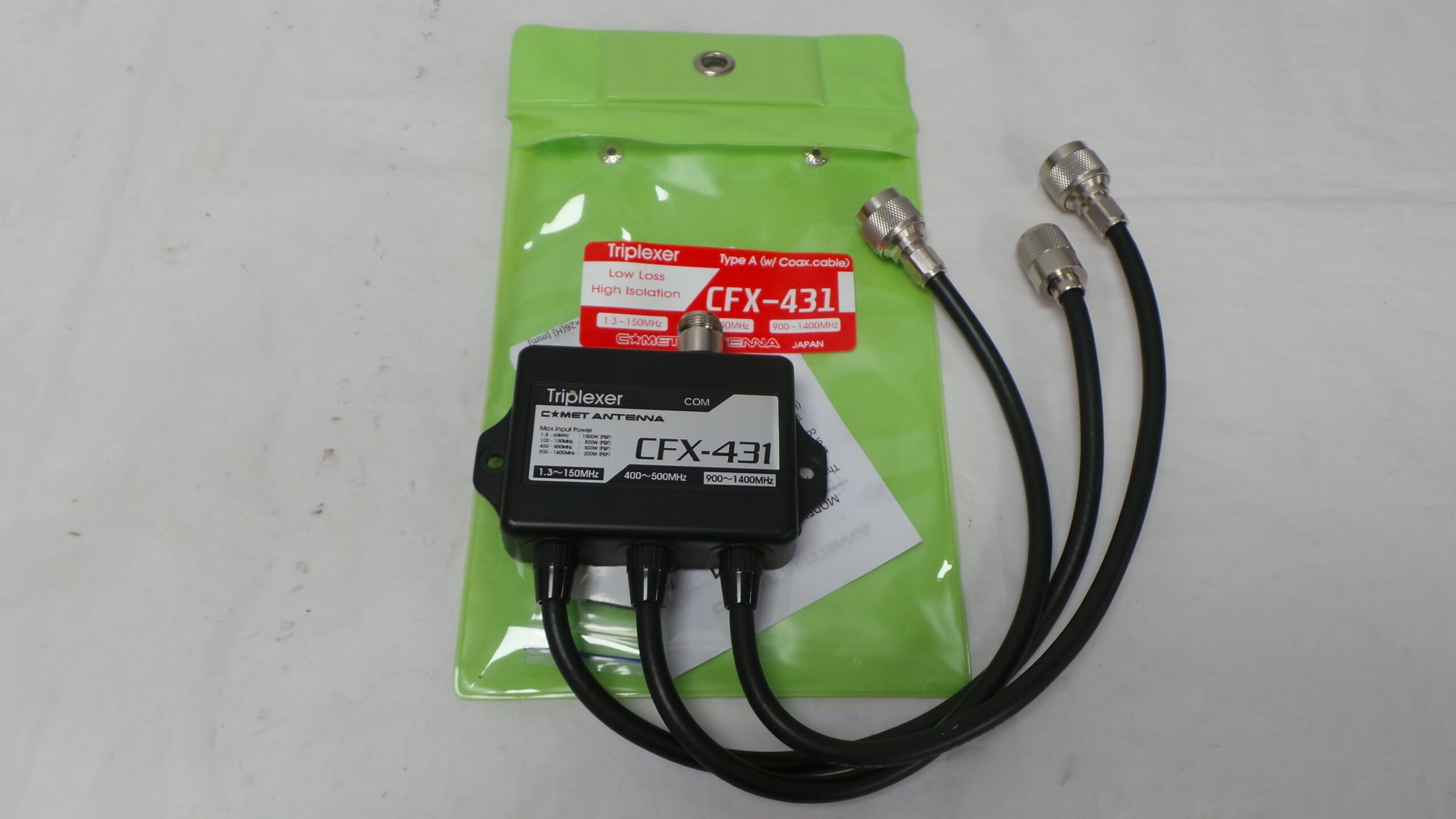

The Comet CFX-431A Triplexer, for transmitting and rceiving all three bands 144/433/1200 Mhz at the same time.

The combined high quality filters of the CFX-431A work to prevent occurence of TVI, and the isolation between the connectors is over 50dB.

Specification :-

* BandPass Fequency and Input Loss :- * 1.3 – 150 Mhz Less than 0.2dB * 400 – 500 Mhz Less than 0.3dB * 900 -1400 Mhz Less than 0.4dB * Impedance :- 50 Ohms * V.S.W.R. Less than 1:1.2 * Maximum Power 1.3 – 60 Mhz 1000 Watts (PEP) * Maximum Power 100 – 500 Mhz 800 Watts (PEP) * Maximum Power 400 – 500 Mhz 500 Watts (PEP) * Maximum Power 900 – 1400 Mhz 200 Watts (PEP)

Connectors :-

* Input N Type Socket * Output Leads, 1 x Pl259, 2 x N Type Plugs Fitted * Size :- W66 x D90 x H26mm
